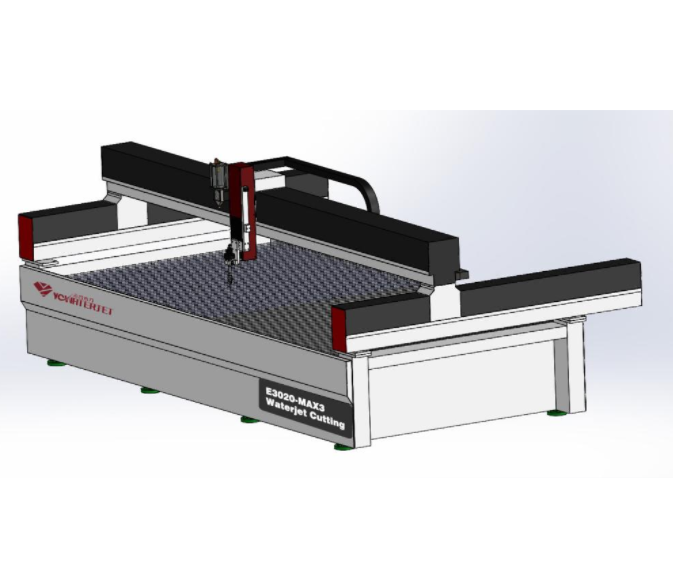

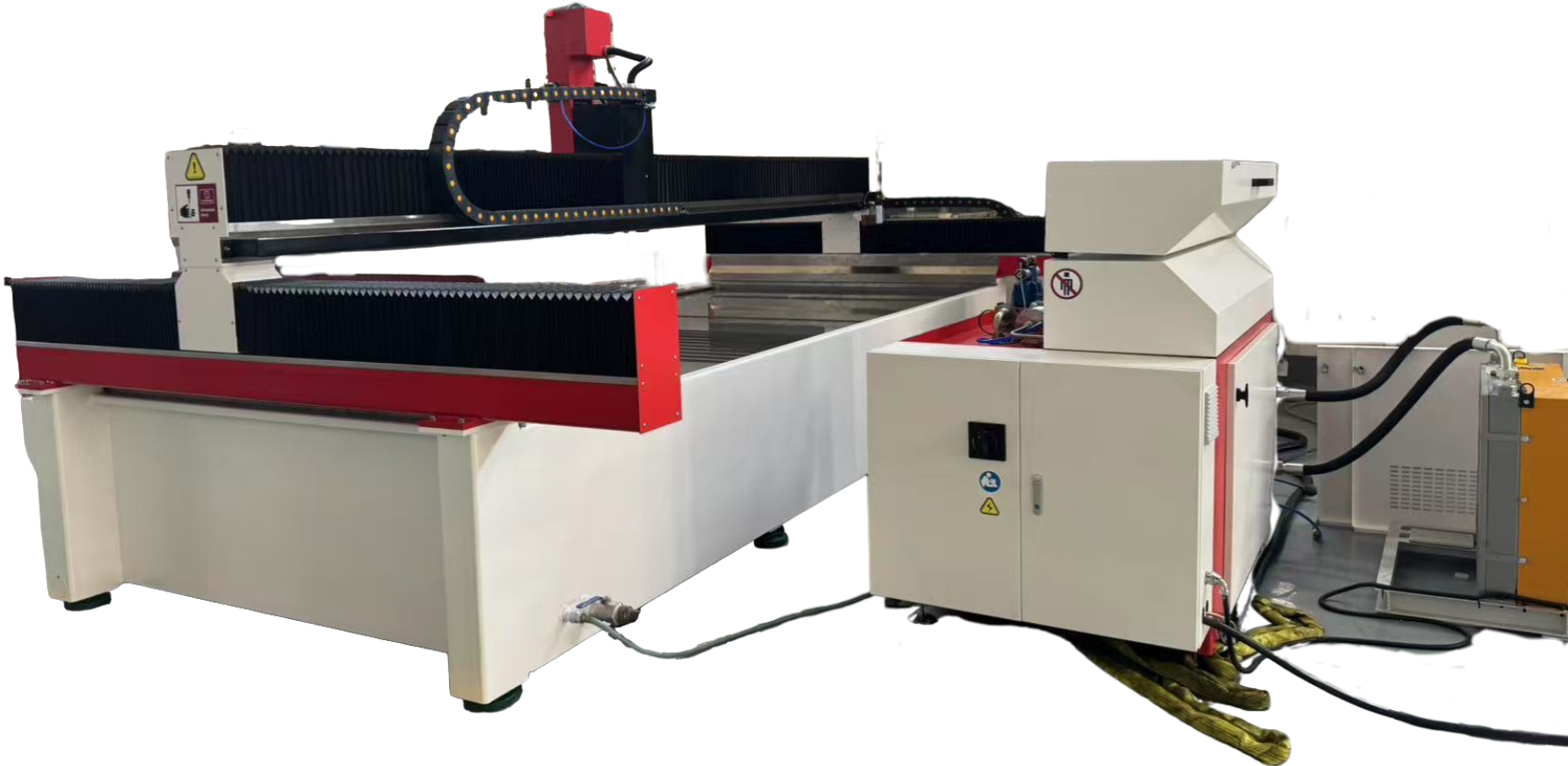

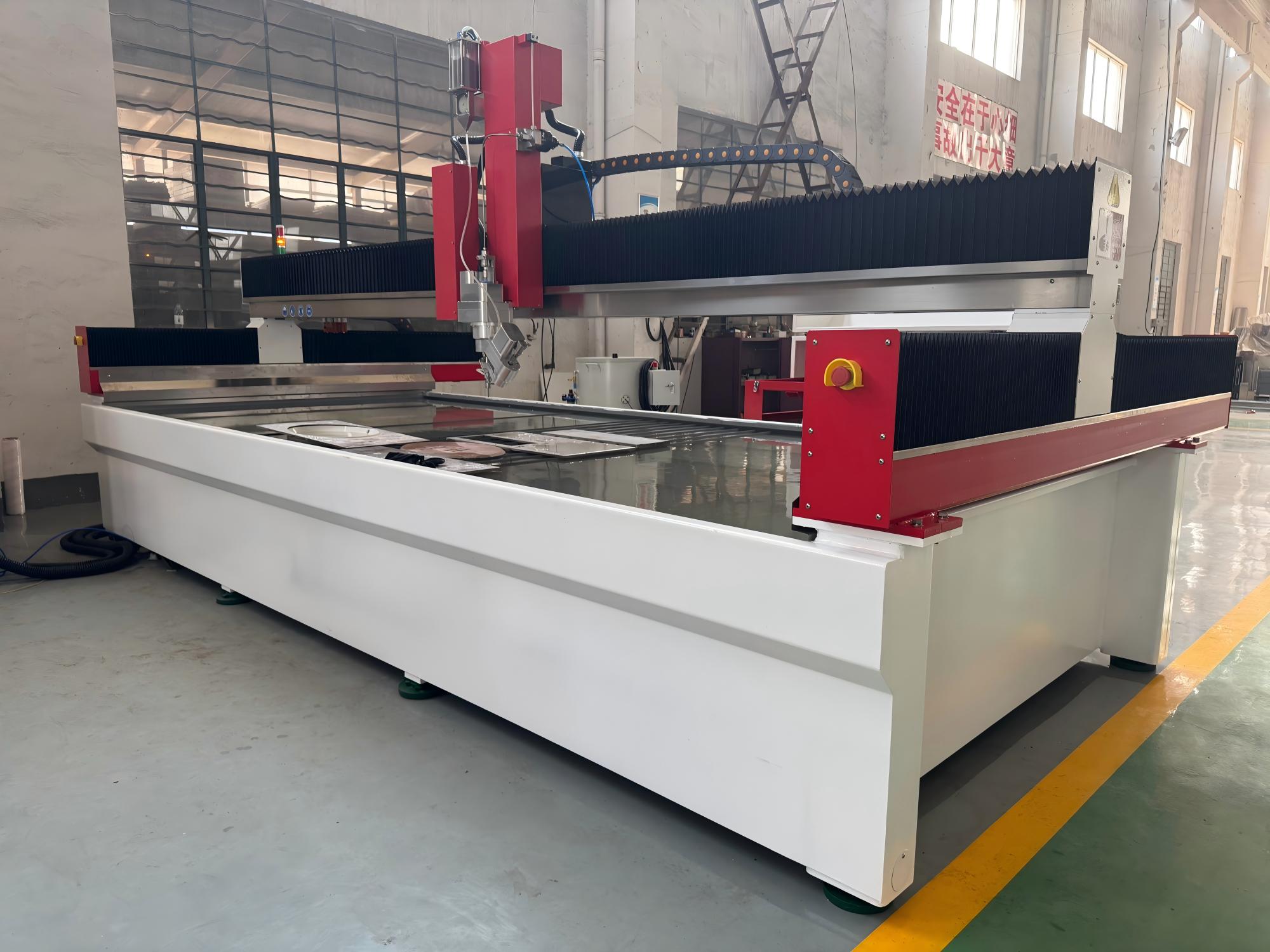

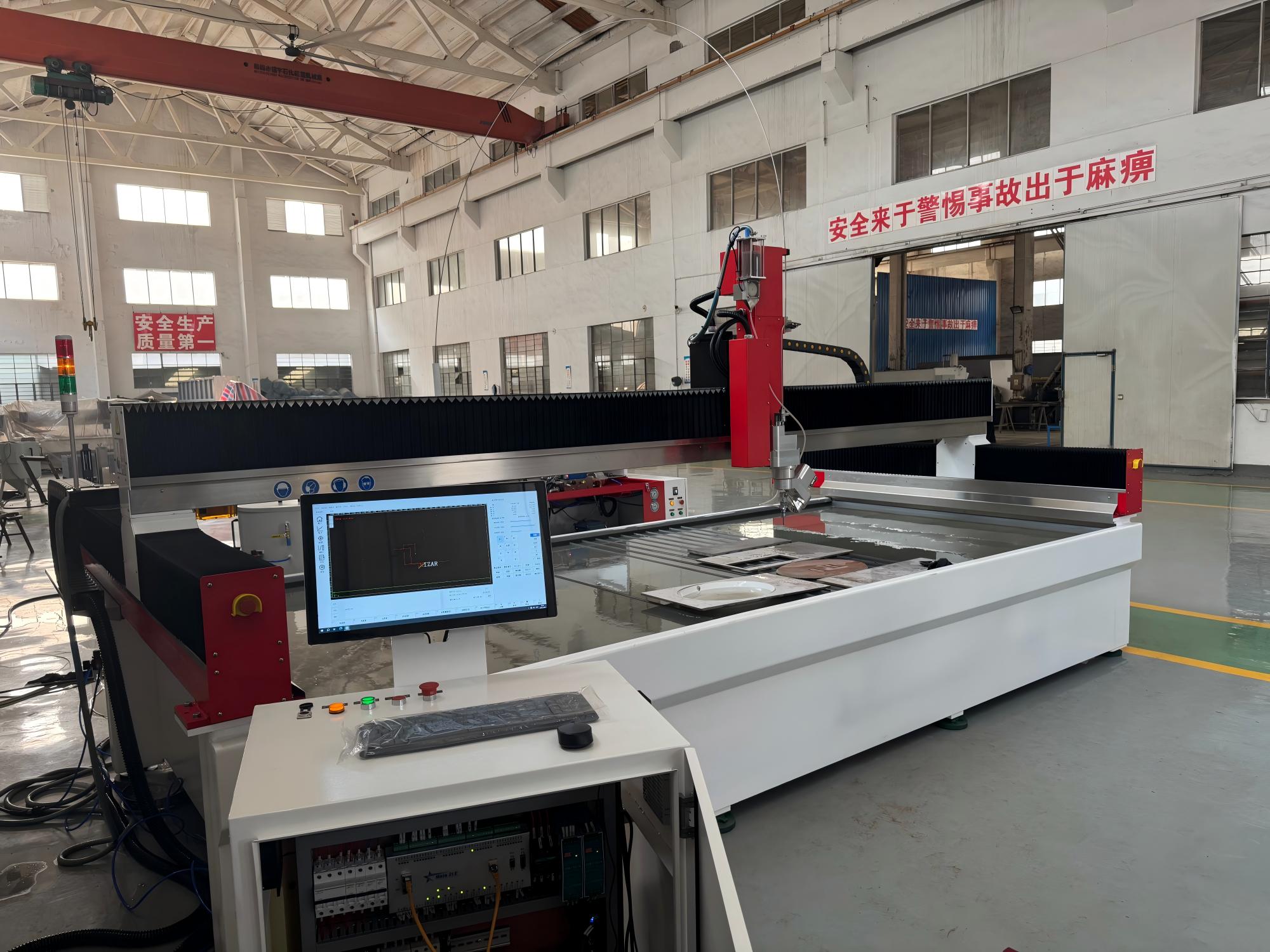

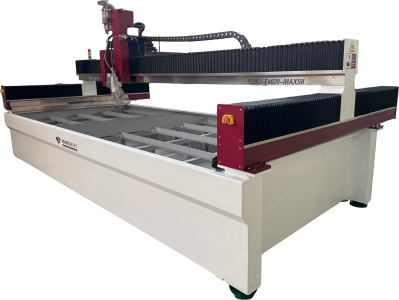

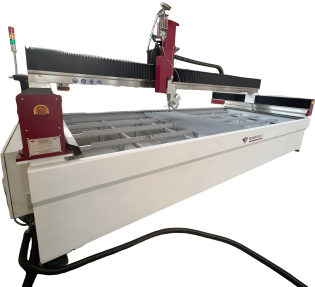

CNC New E Series Water Jet Cutting Machine

• Cold Cutting, Zero Heat Damage

Waterjets utilize ultra-high-pressure water jets (with mixed abrasives) for cutting, generating no high temperatures. This fundamentally avoids the thermal effects of traditional cutting methods (such as flame and laser) that can cause cracking, discoloration, edge erosion, or damage to the stone's crystal structure. This perfectly preserves the stone's natural color, texture, and physical properties. This is the only option for precious and delicate stones (such as marble, quartz, and semi-precious stones) to maintain their pristine beauty.

• Unlimited Complex Shapes

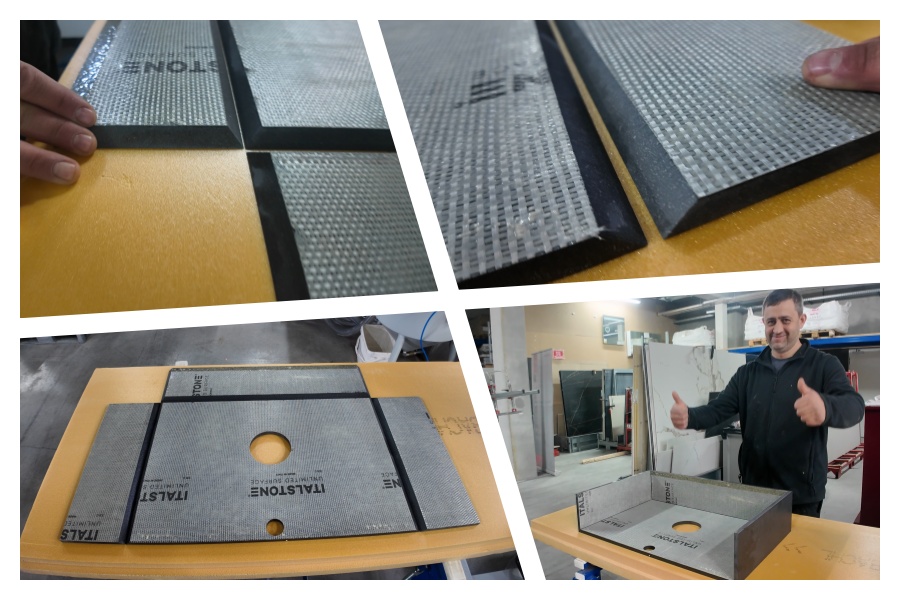

Waterjets offer an accuracy of ±0.1mm and the ability to cut infinitely complex shapes. Whether it's intricate mosaic patterns, complex relief sculptures, or any imaginable curves and contours (such as door and window moldings and Roman columns), waterjets can easily create them. This opens up a world of creativity for designers, transforming stone from a regular geometric block into an artistic medium that can be shaped into any desired form.

• Seamless Artistry

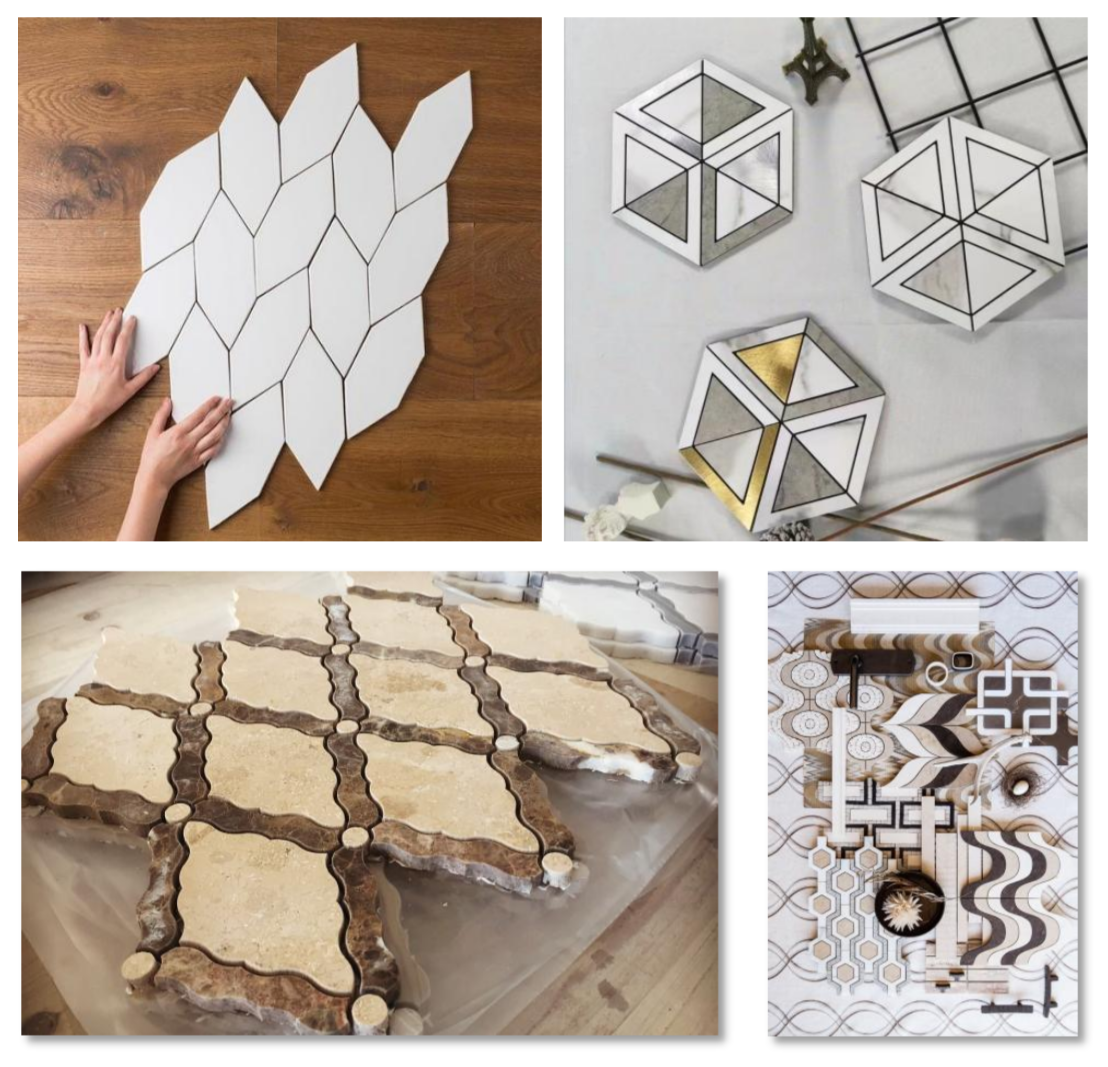

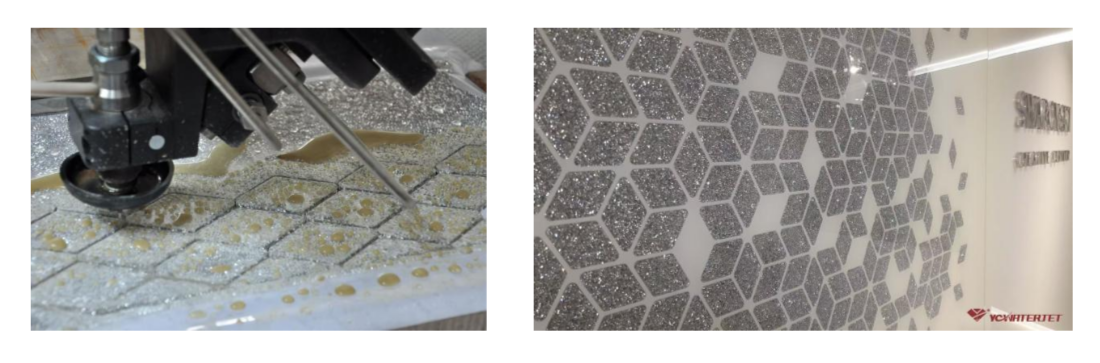

For oversized mosaics or complex patterns, waterjets can form the work in a single process on a single sheet, eliminating the seam issues associated with traditional multiple-piece assembly. This not only enhances the overall aesthetic and overall beauty of the work, but also greatly strengthens the structural strength, creating a seamless and flawless artistic effect.

• One Machine, Endless Materials

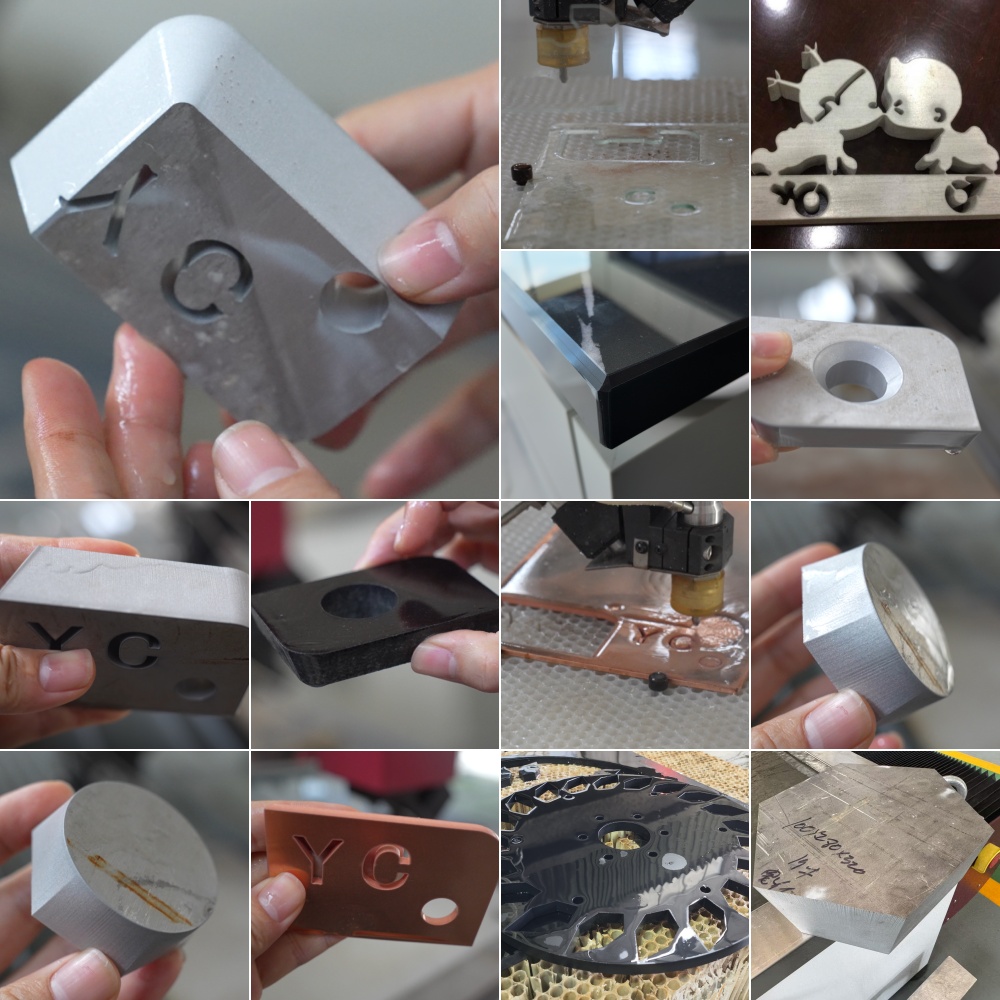

From the softest quartz to the hardest granite, and even materials as diverse as metal, glass, and ceramic, waterjets can effortlessly cut. This powerful adaptability enables stone processing companies to easily undertake diverse, multi-material projects, achieving "one machine for multiple uses" and improving equipment utilization and market competitiveness.

• Eco-Friendly & Efficient

The primary cutting media during the cutting process are water and natural pomegranate abrasive, which produces no toxic gases or dust, significantly improving the working environment and safeguarding employee health. Furthermore, the waterjets' narrow incision (approximately 1mm) significantly reduces material waste and increases the utilization rate of precious stone, meeting the environmental and sustainable development requirements of modern manufacturing.

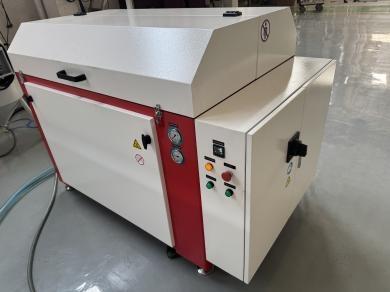

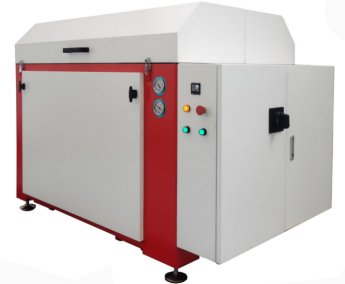

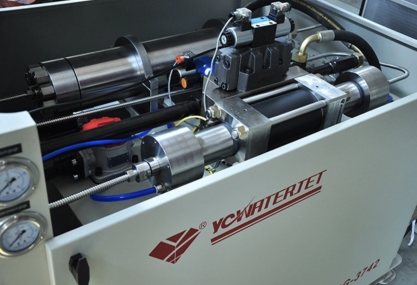

- Intensifier assembly: Main components from Accustream

- Single-row type water filtering system

- Manual pressure regulation function

- Max pressure： 4137bar(60000psi)

- Working Pressure: 340Mpa

- Star Triangle Start

- Main motor:37KW/50HP

- Max water flow: 3.7L/Min

- Main elextric components：Schneider

- PLC：Siemens

- Extra pressure auto stop and protection

-  Inlet water booster pump

- Oil temperture senser

- Inlet water pressure sensor

- Three-ply safeguard(HP overpressure/over oil temperture/inlet water pressure low)

- Electrical components: Schneider

- PLC: Siemens

- Oil pressure and inelet water pressure gauge: WIKA

- Hydraulic valves & oil pump：HYTEK

The FlowEdge P100 is a 3axis planar cutting system primarily used for cutting materials such as glass, stone, and metal. It is also suitable for cutting glass door clamps and holes in the bathroom industry.

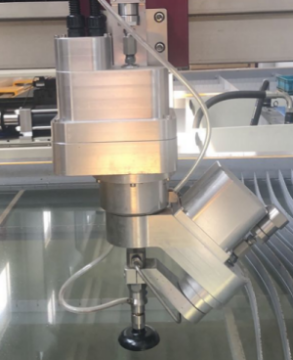

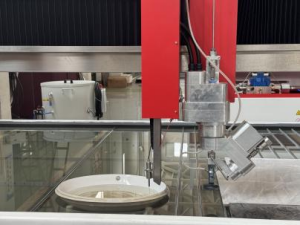

The FlowEdge P200 is a 5axis cutting system that supports beveling, primarily used for processing tile mosaics, slab countertops, ceramic basins, and metal parts.

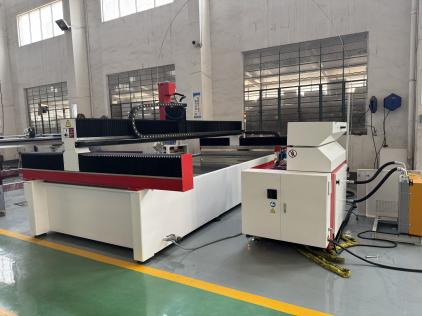

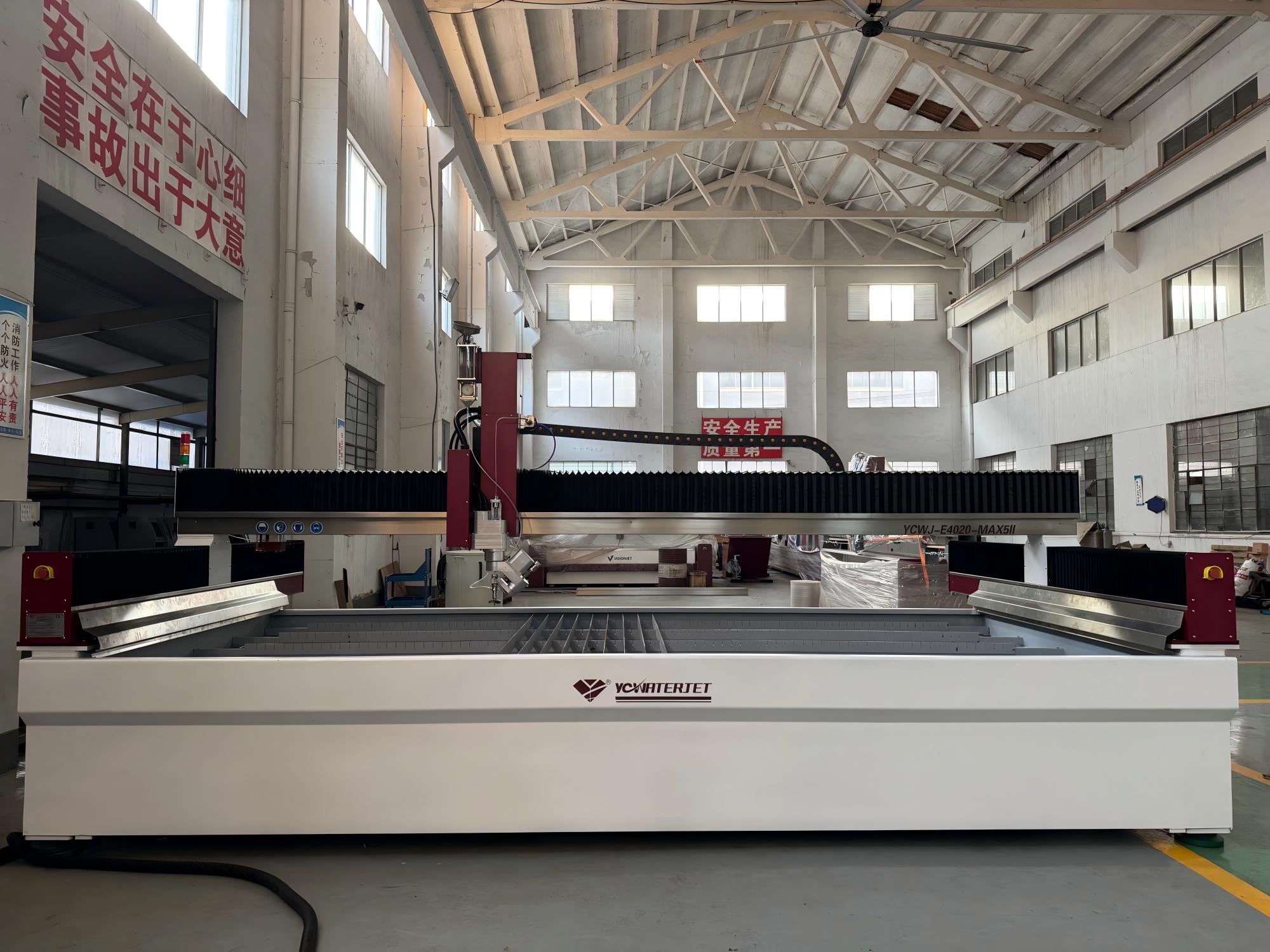

The E series water jet cutting machine is specially developed by us for the stone cutting industry. Compared to the standard cutting machines, it has a lower price and lower cost. In addition to stone materials, the E series water jet cutting machines can also cut other materials such as metal, glass, carbon fiber, rubber, etc.
