Dynamic 5 axis waterjet

YC Water jet Technology Co.,Ltd is one of the toppest waterjet stone cutting machine,dynamic 5 axis waterjet cutting machine in China.During over 15 years of exporting , YC Water jet Technology Co.,Ltd now has rich experience in the worldwide markets.

Description
Certificates Display

Dynamic 5 axis waterjet cutting head

A,B axis for compensation 0°-±10°
The Dynamic 5 axis water jet cutting head realizes any angle control of the cutting head by changing the inclination angle of the cutting head in the horizontal and vertical directions at the same time, It turns without pause and cuts faster. The maximum inclination angle of this dynamic water cutting machine is 10 degrees，it is a kind of bevel cutting machine.

Due to the dynamic water jet cutting is a way of flexible cutting, therefore the product cross section after cutting by the traditional 3 axis waterjet cutting will have a certain degree of inclination. In order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. Then, our dynamic 5 axis waterjet cutter can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. This feature is used for cutting in various industries to keep the vertical.

The cutting head of this 5axis waterjet cutter can be inclined to cut in any direction, the phenomenon of small surface and large bottom is eliminated, and the front side splice gap for stone pattern is smaller, So that this 5 axis dynamic water cutting machine can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor. So we can say this 5 axis waterjet cutter is also a good water jet stone cutting machine.

Details of dynamic 5axis water jet cutter

Cutting sample

Dynamic 5 axis water jet cutting machine can create 0~±10° inclined cuts. In the waterjet stone cutting industry, this product can create perfect mosaic in a single operation. When applied in the metal working industry, it can perform vertical cutting, and also enable taper compensation by adjusting angles, thus making a finished edge completely vertical. If you want a machine for both stone processing and metal applications, this dynamic 5 axis water jet cutter will be your best choice.

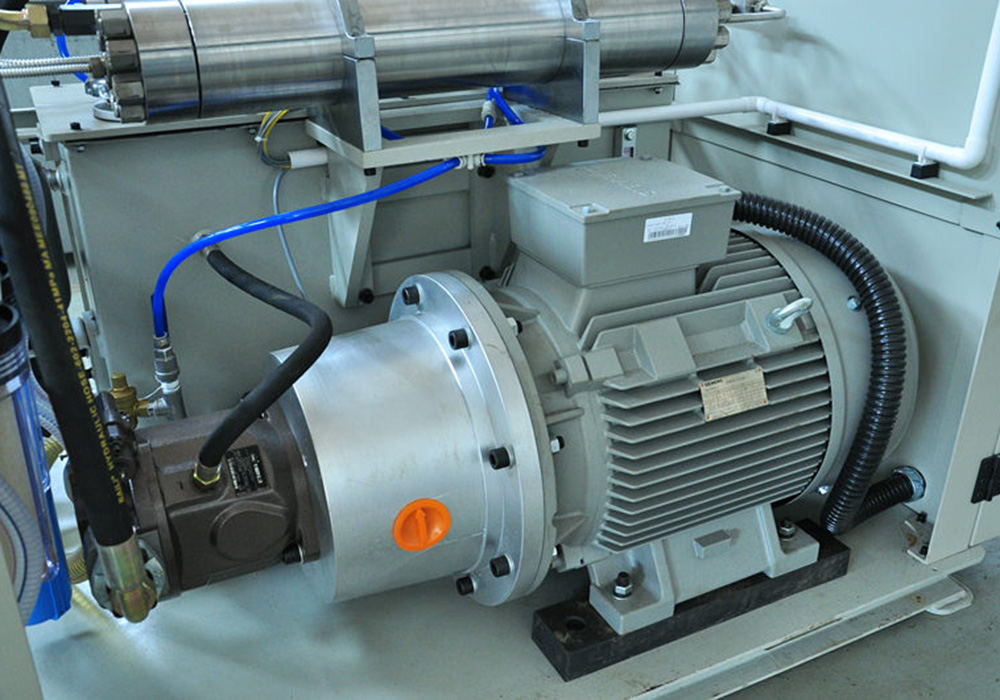

Water jet high pressure pump

Main Feature:
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

High Pressure Pump
Model	YCG-3038	YCG-3742S	YCG-7542S
Max Pressure	3800Bar/55,000Psi	4137Bar/60,000Psi	4137Bar/60,000Psi
Max Water Flow	3.7L/min	3.7L/min	7.4L/min
Max Orifice/Nozzle	0.011/0.03	0.013/0.04	0.016/0.05
Power	30KW/40HP	37KW/50HP	75KW/100HP

More information...

Core Component Options

Featuring a low noise, no pollution, high precision and high reliability

Waterjet Cutting Table

Gantry type
Cantilever type
Full closed small type
Custom type

Cutting Head

Max 5 cutting head
This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.
Dynamic 5 cutting head
Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.
Multi-head
Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.

High Pressure Pump

Unique design of this water jet cutting machine makes the installation and the maintenance easier.Stable working pressure to ensure the working efficiency.

1.YC pumps 40hp/50hp/100hp
2.Hypertherm

CNC Controller&Software

WEIHONG CNC SYSTEM
NESTING &PROGRAMMING
ECS CONTROLLER

Optional Functions

Abrasive feeding system
Cooling system
Cutting head with drilling function
Height measurement
Exchanged platform
Hydraulic loading system
Sludge remove system
