Sludge Remove System
YC Water jet Technology Co.,Ltd is one of the toppest Sludge Remove System in China.During these years of exporting , YC Water jet Technology Co.,Ltd now has rich experience in the worldwide markets
Introduction
Remove the abrasive from the tank automatically,separate the abrasive and water.Reduce the labor force,improve work efficiency.

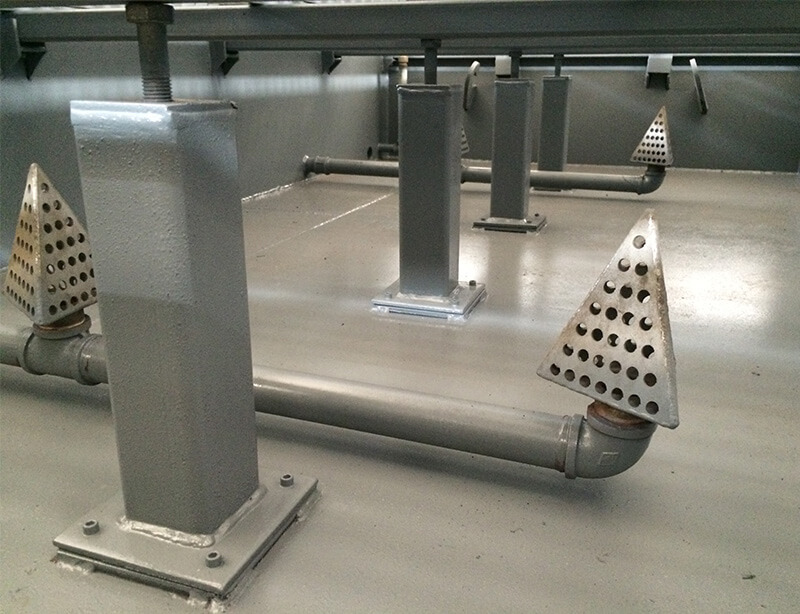

The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
DATA OF ABSORPTION PUMP
Data of Single pump
Flow rate：8 M³/H
Lift：50 M
Exit pressure：6 kgf/cm²
Absorption distance：7 M
Max. Diameter of solid particle which can get through：4.5mm
Inlet and outlet diameter of pump：40mm
Power：compressed air
Max. Inlet pressure：7 kg f/cm²
Max. Consumption of air：0.6 mm³/min
Diameter of air pipe：10mm
Collection box：1.6m*1.0m*1.0m
Optional imported pump available as customer's requirements (Brand: Ingersoll Ran)
Core Component Options
Featuring a low noise, no pollution, high precision and high reliability
Max 5 cutting head
This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.
Dynamic 5 cutting head
Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.
Multi-head
Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.
This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.
Dynamic 5 cutting head
Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.
Multi-head
Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.
Unique design of this water jet cutting machine makes the installation and the maintenance easier.Stable working pressure to ensure the working efficiency.
1.YC pumps 40hp/50hp/100hp2.Hypertherm
Optional Functions
