Max 5 series cnc waterjet cutting machine

YC Water jet Technology Co.,Ltd is one of the toppest 3d waterjet cutting,5 axis waterjet,cnc waterjet cutting machine in China.During these years of exporting , YC Water jet Technology Co.,Ltd now has rich experience in the worldwide markets

Parameters
Certificates Display

Parameters of Max 5 cnc waterjet cutting machine

Details

1、Details of cutting head

5axis 3d cutting head

-Bevel axis (A): ±45°

-Rotary axis (C): ±540°

-Control accuracy: ±0.01mm

-Angle accuracy: 0.01°

Max 5 series 5axis waterjet cutting head is based on the standard three-axis (x-axis Y-axis Z-axis) and adds the a-axis (rotation around x-axis) and the c-axis (rotation around z-axis), which can achieve large-angle deflection。By using state-of-the-art technology and Italian ECS control system, it can produce 0-±45° or more inclined cuts with a maximum rotation angle of up to ±540°.Therefore, it can achieve the effect of 3d waterjet cutting.

With Max5 series 5 axis cnc water jet cutting system YC WATER JET has been widely used in cutting industry with high-precision requirement, such as cutting cone, arc-shaped impeller, gear and other workpieces.

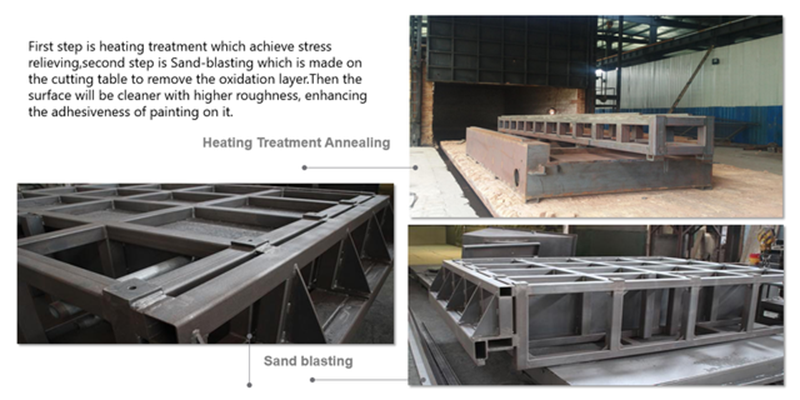

2、Details of cutting platform

CNC Water Jet Cutting Machine Parameter(L=Gantry type)
Parameters		Unit	YCWJ-L1010	YCWJ-L2015	YCWJ-L3015	YCWJ-L3020	YCWJ-L2060
Efficient Cutting Area		mm	1000×1000	2000×1500	3000×1500	3000×2000	2000×6000
Axis Travel	X	mm	1000	2000	3000	3000	2000
	Y	mm	1000	1500	1500	2000	6000
	Z	mm	150-180	150-180	150-180	150-180	150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy		mm	±0.1
Positioning Accuracy		mm	±0.2
X,Y Dry-run Speed		m/min	0-15 (if need 30m/min speed,we can do as request )
Cutting Speed		m/min	as to detail material and thickness

YCWJ-S1010Table (fully enclosed mini waterjet)

Structure：
- It is hygienic and reliable. Totally enclosed glass cutting space, clean and dust-free. we can clearly watch the cutting process .
- It will be shut down if open the window, it's safe and smart.
- The SS collecting tank can concentrate the residue and the waste water after cutting.
- Movable cleaning window is simple and convenient to operate.

Transmission：
- With AC servo system, the accuracy is higher.
- Linear guide and ball screw module is durable.
- Effective cutting size：1000mm*1000mm*200mm
- Maximum cutting speed：15m/min

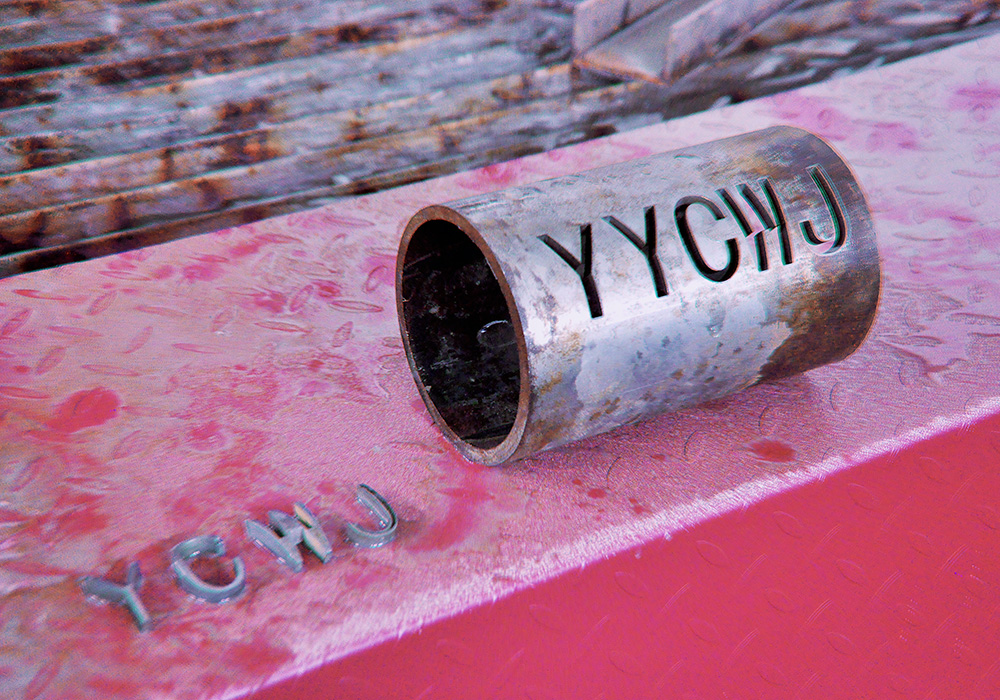

Cutting samples of 5 axis water jet cutting machine

The 5-axis waterjet cutting machine is a remarkable innovation in the field of CNC waterjet cutting. This advanced technology finds extensive applications in various industries. In manufacturing, it is used to precisely cut a wide range of materials, including metals, plastics, and composites, with exceptional accuracy and flexibility. It can create complex shapes and geometries that would be difficult to achieve with other methods. The 5-axis configuration allows for more intricate cuts and the ability to work on three-dimensional objects. This makes it ideal for fabricating components with unique designs, such as in the aerospace and automotive sectors. Architectural and decorative industries also benefit from the 5-axis waterjet cutting machine. It can create elaborate patterns and designs on various materials for ornamental purposes. Moreover, in the field of prototyping and custom manufacturing, this machine offers quick turnaround times and the ability to adapt to diverse design requirements. Overall, the 5-axis waterjet cutting machine with its CNC capabilities is a game-changer, enabling industries to achieve higher levels of precision, creativity, and efficiency in their manufacturing and fabrication processes.

Water jet high pressure pump

Main Feature:
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

High Pressure Pump
Model	YCG-3038	YCG-3742S	YCG-7542S
Max Pressure	3800Bar/55,000Psi	4137Bar/60,000Psi	4137Bar/60,000Psi
Max Water Flow	3.7L/min	3.7L/min	7.4L/min
Max Orifice/Nozzle	0.011/0.03	0.013/0.04	0.016/0.05
Power	30KW/40HP	37KW/50HP	75KW/100HP

CNC Controller

Simple to use, easy to learn, Powerful functions.

Core Component Options

Featuring a low noise, no pollution, high precision and high reliability

Waterjet Cutting Table

Gantry type
Cantilever type
Full closed small type
Custom type

Cutting Head

Max 5 cutting head
This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.
Dynamic 5 cutting head
Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.
Multi-head
Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.

High Pressure Pump

Unique design of this water jet cutting machine makes the installation and the maintenance easier.Stable working pressure to ensure the working efficiency.

1.YC pumps 40hp/50hp/100hp
2.Hypertherm

CNC Controller&Software

WEIHONG CNC SYSTEM
NESTING &PROGRAMMING
ECS CONTROLLER

Optional Functions

Abrasive feeding system
Cooling system
Cutting head with drilling function
Height measurement
Exchanged platform
Hydraulic loading system
Sludge remove system
