it is much better than the VSR (to eliminate the stress is 35%),It can ensure the accuracy and stability in long time.
|

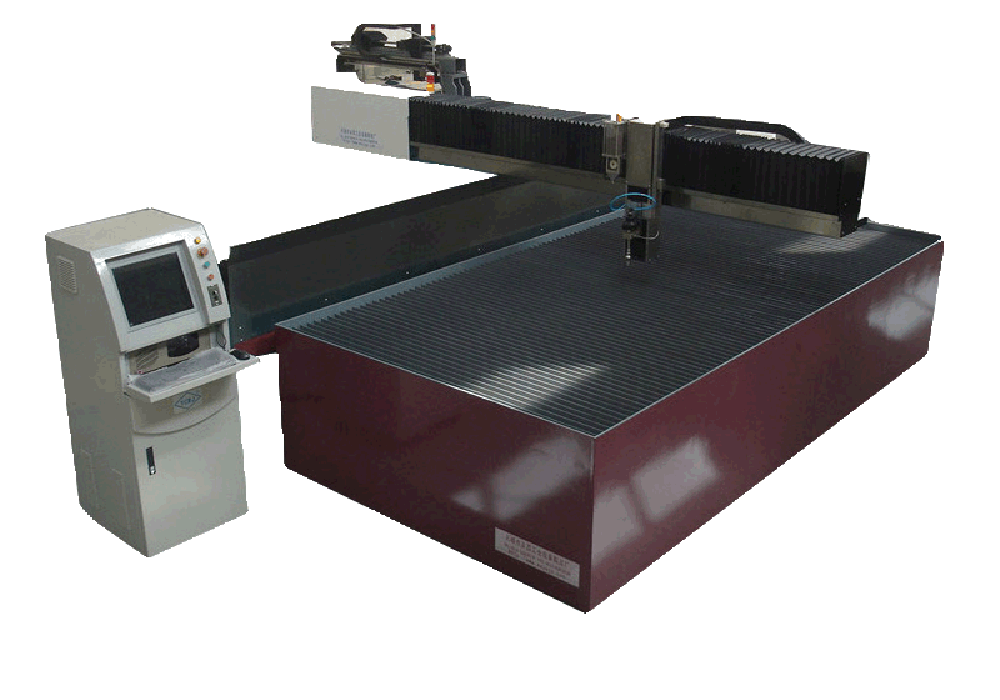

Model |
YC-X1020 |
YC-X1030 |
YC-X1530 |
YC-X1560 |
|
|
Efficient Cutting area |
1000*2000 |
1000*3000 |
1500*3000 |
1500*6000 |
|
|
(mm) |
|
|
|
|
|
|
Axis travel |
X axis |
1000 |
1000 |
1500 |
1500 |
|
(mm) |
Y axis |
2000 |
3000 |
3000 |
6000 |
|
|
Z axis |
150-200 |
150-200 |
150-200 |
150-200 |
|
CNC control system |
AC Sevor motor |
AC Sevor motor |
AC Sevor motor |
AC Sevor motor |
|
|
Accuracy |
Cutting |
+/-0.1mm |
|||
|
|
accuracy |
|
|||
|
|
Repeat |
+/-0.05mm |
|||
|
|
accuracy |
|
|||
|
Processing speed |
0-15m/min |
||||
|
Power supply |
220V/380V/415V ,3ph,50HZ/60HZ (can be customed as customer's request) |
||||
Ultra-high pressure water jet is mainly divided into abrasive cutting and only water cutting(Including pure water cutting). Therefore, the cutting head is also divided into abrasive waterjet cutting head and pure waterjet cutting head.

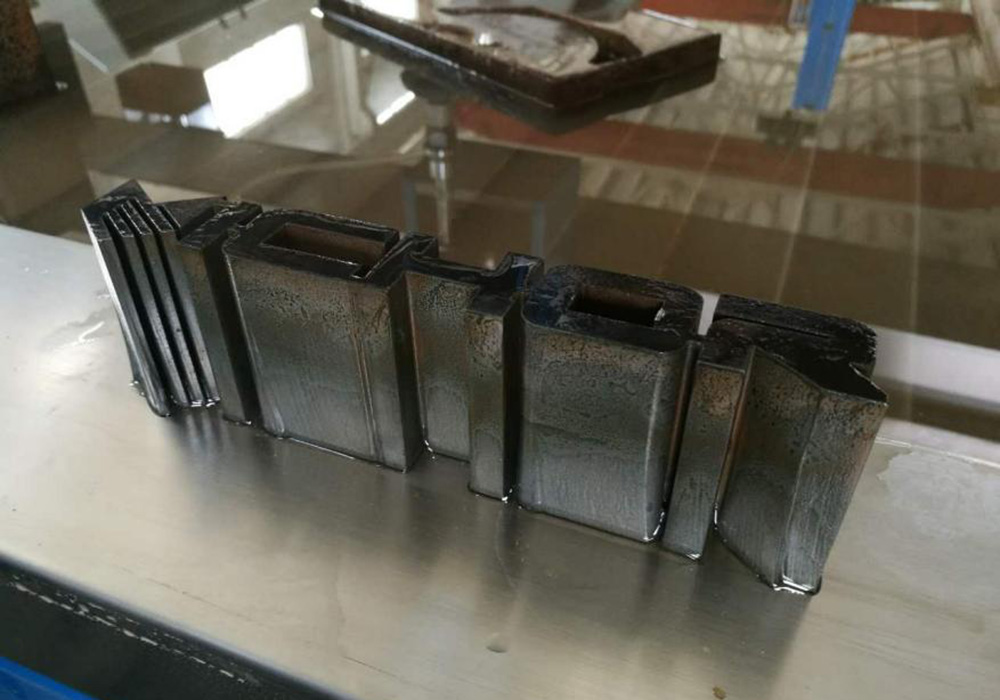

Abrasive waterjet cutting is mainly used for cutting metal (such as carbon steel, stainless steel, etc.), nonferrous metal (such as copper, aluminum, titanium alloy, magnesium alloy, etc.), stone, glass, large thickness composite materials (such as carbon fiber, glass fiber) and so on.
Only water cutting is mainly used for cutting rubber, foam, cloth, paper, rock wool, food （pure waterjet cutting）and so on.
|
High Pressure Pump |
|||
|
Model |
YCG-3038 |
YCG-3742S |
YCG-7542S |
|
Max Pressure |
3800Bar/55,000Psi |
4137Bar/60,000Psi |
4137Bar/60,000Psi |
|
Max Water Flow |
3.7L/min |
3.7L/min |
7.4L/min |
|
Max Orifice/Nozzle |
0.011/0.03 |
0.013/0.04 |
0.016/0.05 |
|
Power |
30KW/40HP |
37KW/50HP |
75KW/100HP |

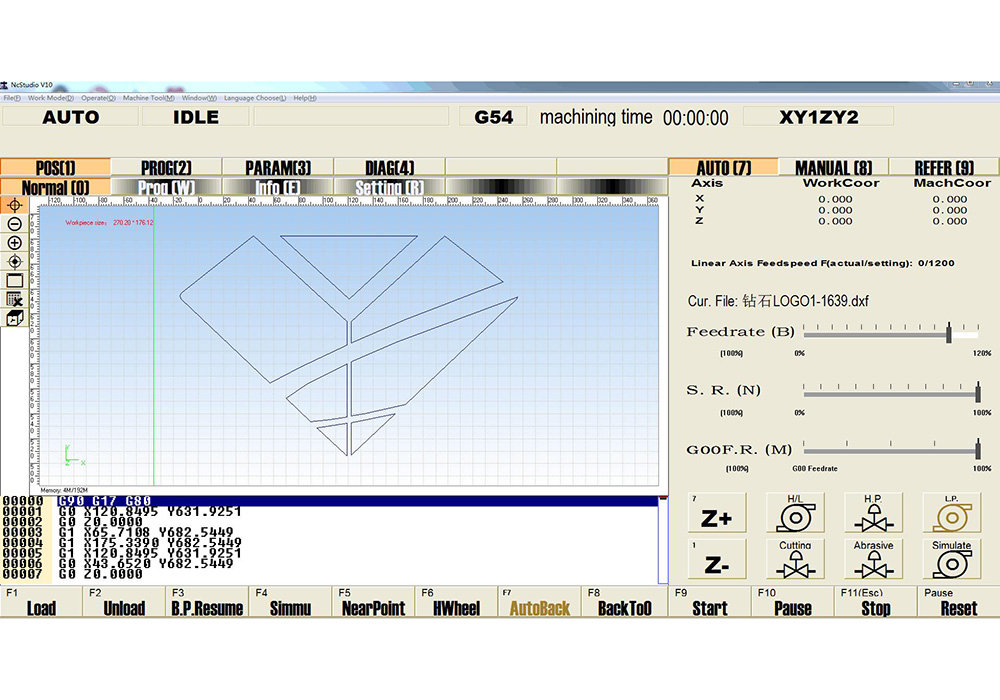

Simple to use, easy to learn, Powerful functions
Featuring a low noise, no pollution, high precision and high reliability
This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.
Dynamic 5 cutting head
Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.
Multi-head
Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.
Unique design of this water jet cutting machine makes the installation and the maintenance easier.Stable working pressure to ensure the working efficiency.
1.YC pumps 40hp/50hp/100hp2.Hypertherm
