2、Abrasive waterjet cutting is mainly used for cutting metal (such as carbon steel, stainless steel, etc.), nonferrous metal (such as copper, aluminum, titanium alloy, magnesium alloy, etc.), stone, glass, large thickness composite materials (such as carbon fiber, glass fiber) and so on.
3、Only water cutting is mainly used for cutting rubber, foam, cloth, paper, rock wool, food （pure waterjet cutting）and so on.4、In recent years, with the application of water jet cutting more and more widely, people's requirements for water jet cutting are also getting higher and higher，from the initial complete vertical cutting to bevel chamfer cutting and even more complicated gradient surface cutting.Thus, a five axis cutting system with deflection angle and dynamic adjustment function has been produced.
5、5 axis waterjet cutting machine is divided into dynamic 5 axis waterjet cutting and 5axis 3D waterjet cutting . The functional difference between them is reflected in the waterjet cutting head.
Featuring a low noise, no pollution, high precision and high reliability

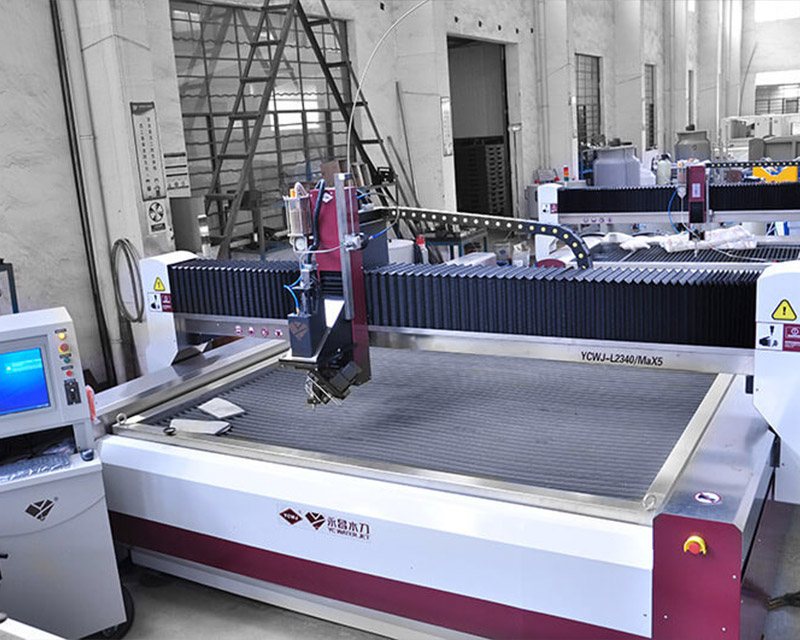

This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.
Dynamic 5 cutting head
Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.

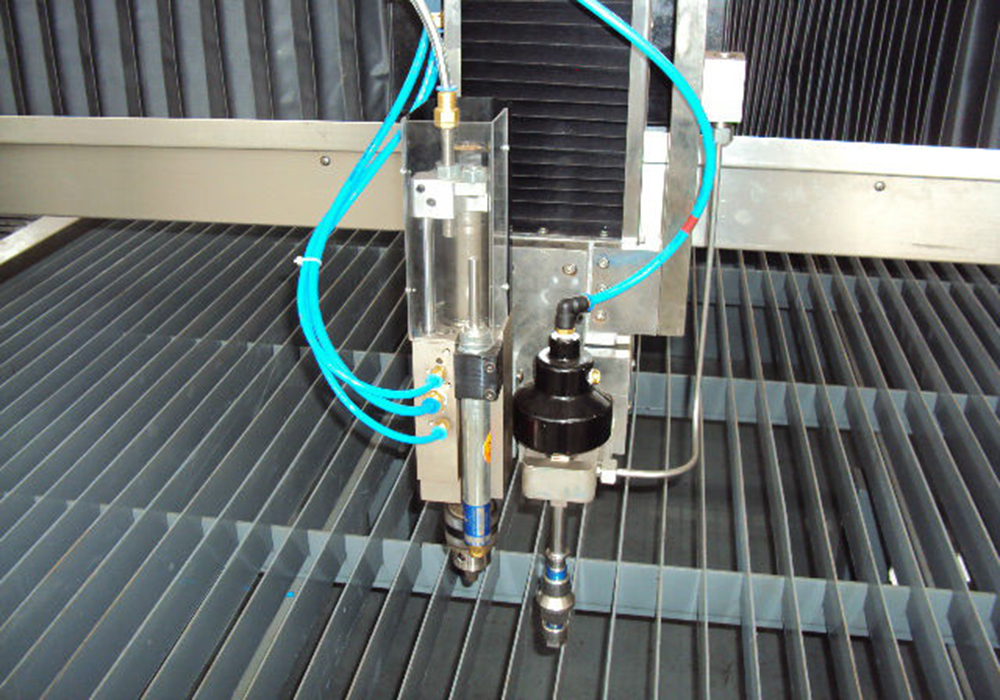

Multi-head
Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.
Unique design of this water jet cutting machine makes the installation and the maintenance easier.Stable working pressure to ensure the working efficiency.
1.YC pumps 40hp/50hp/100hp2.Hypertherm
-Bevel axis (A): ±45°
-Rotary axis (C): ±540°
-Control accuracy: ±0.01mm
-Angle accuracy: 0.01°
Max 5 axis waterjet cutting head is based on the standard three-axis (x-axis Y-axis Z-axis) and adds the a-axis (rotation around x-axis) and the c-axis (rotation around z-axis), which can achieve large-angle deflection。By using state-of-the-art technology and Italian ECS control system, it can produce 0-±45° or more inclined cuts with a maximum rotation angle of up to ±540°.Therefore, it can achieve the effect of 3d waterjet cutting.
With Max 5 axis water jet cutting system YC WATER JET has been widely used in cutting industry with high-precision requirement, such as cutting cone, arc-shaped impeller, gear and other workpieces.
Due to the water jet cutting is a way of flexible cutting, therefore the product cross section after cutting by the traditional 3 axis water jet cutting machine will have a certain degree of inclination. In order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. Then, our dynamic 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed.This feature is used for cutting in various industries to keep the vertical.In the stone cutting industry is particularly prominent.
Its cutting head can be inclined to cut in any direction, the phenomenon of small surface and large bottom is eliminated, and the front side splice gap for stone pattern is smaller, So that this dynamic 5 axis water jet cutting machine can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.
Dynamic 5 axis cutting head
X、Y、Z axis for transmission
A,B axis for compensation 0°-±10°
