Plasma Cutting Machine
YC Water jet Technology Co.,Ltd is one of the toppest Plasma Cutting Machine in China.During these years of exporting , YC Water jet Technology Co.,Ltd now has rich experience in the worldwide markets
1、YC high precision plasma bevel cutting machine
CNC plasma 5-axis bevel cutting machine is used for steel plate,aluminum,iron, copper and other metal materials processing with higher speed and angle compensation. For the different thickness and materials, the power supply can be adjusted accordingly. Its the best choice for the high accuracy and efficiency material cutting processing.
With 5-axis bevel cutting it has the angle compensation to solve the angle cutting for customer.
With 5-axis bevel cutting it has the angle compensation to solve the angle cutting for customer.
Cutting Table Parameter
| Cutting table type | Gantry |
| Efficient cutting area(mm) | Can be customized |
| CNC control system | EDGE Pro(Hypertherm/USA) |
| Arc voltage height sensor | Sensor THC(Hypertherm/USA) |
| Bevel head system | IMA(TECNO/Italy) |
| Cutting accuracy | +/-0.01mm |
| Supply power voltage/ frequency | 380v±10%/50Hz 3PHASE/220v±10%/50Hz 3PHASE |
| Input power | 3KW |
| Compressed air | Dry, Oil free ; pressure：0.8Mpa;flow： 1.0 m3/h |
| Drive model | Mitsubishi AC servo motor |
| Rail | HIWIN liner guide rail , high-precision railway |
2、CNC Control System
EDGE-Pro (Hypertherm)
* With Patented CutPro® Wizard, even new operators can be cutting production parts in less than five minutes
* On-screen Software Operator’s Console (Soft OpCon) allows easy setup and operation of cutting station and manual motion
* Integrated communications with plasma and torch height control systems deliver automated and expert control using installed
factory or custom cut charts
* Custom cut charts can be created and controlled in the part program or made available to the CutPro Wizard
* EDGE Connect runs on the Windows® 10 Enterprise operating system
EDGE-Pro (Hypertherm)Plasma power-Hypertherm
EDGE-Pro (Hypertherm)Plasma power-Hypertherm
3、Height Control Sensor-Hypertherm (ArcGlide THC)
ArcGlide torch height control
Traditional torch height controls require operators to periodically adjust arc voltage to ensure proper cut height. UsingHypertherm’s proprietary techniques, the ArcGlide® torch height control (THC) continuously samples arc voltage and automaticallyadjusts arc voltage for proper torch height over the life of the consumables without requiring operator input.
The result: optimal cut quality, improved productivity and reduced operating costs for plasma cutting applications – including
True Hole® capability for HyPerformance® plasma HPRXD® installations. The ArcGlide THC is available in both CNC-integrated (with
Hypernet® communication) and standalone configurations.
The result: optimal cut quality, improved productivity and reduced operating costs for plasma cutting applications – including
True Hole® capability for HyPerformance® plasma HPRXD® installations. The ArcGlide THC is available in both CNC-integrated (with
Hypernet® communication) and standalone configurations.

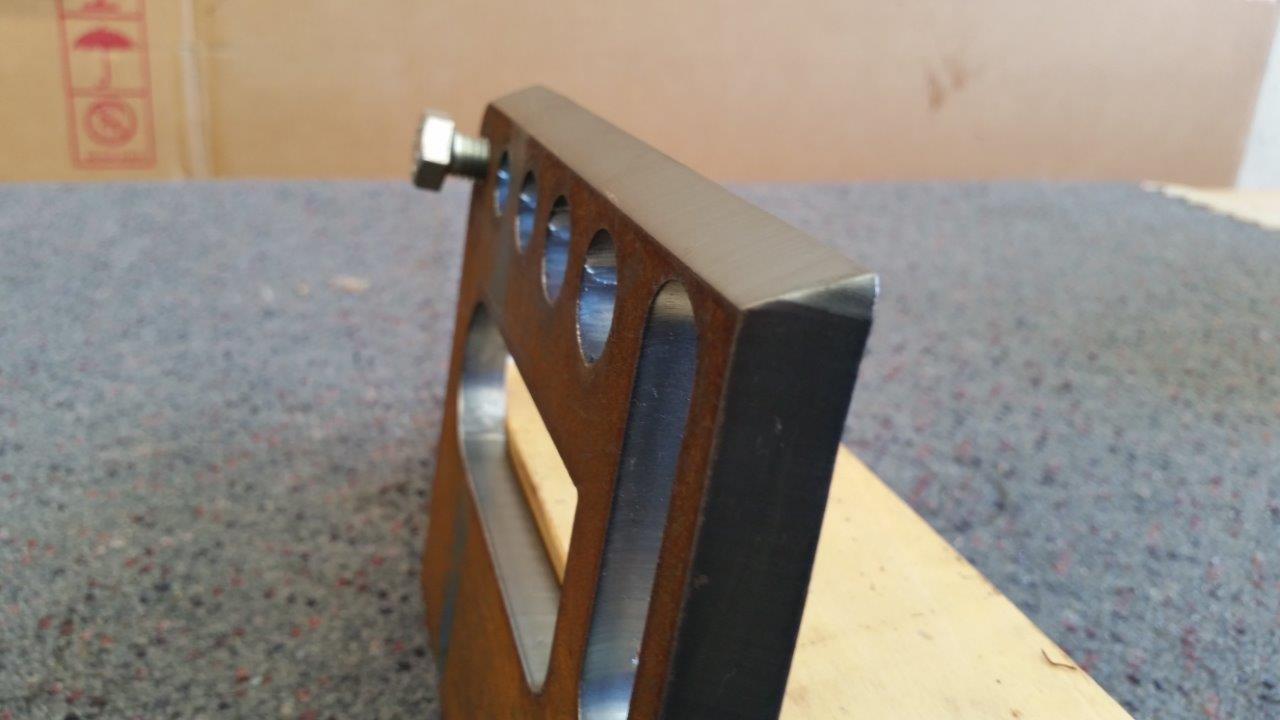

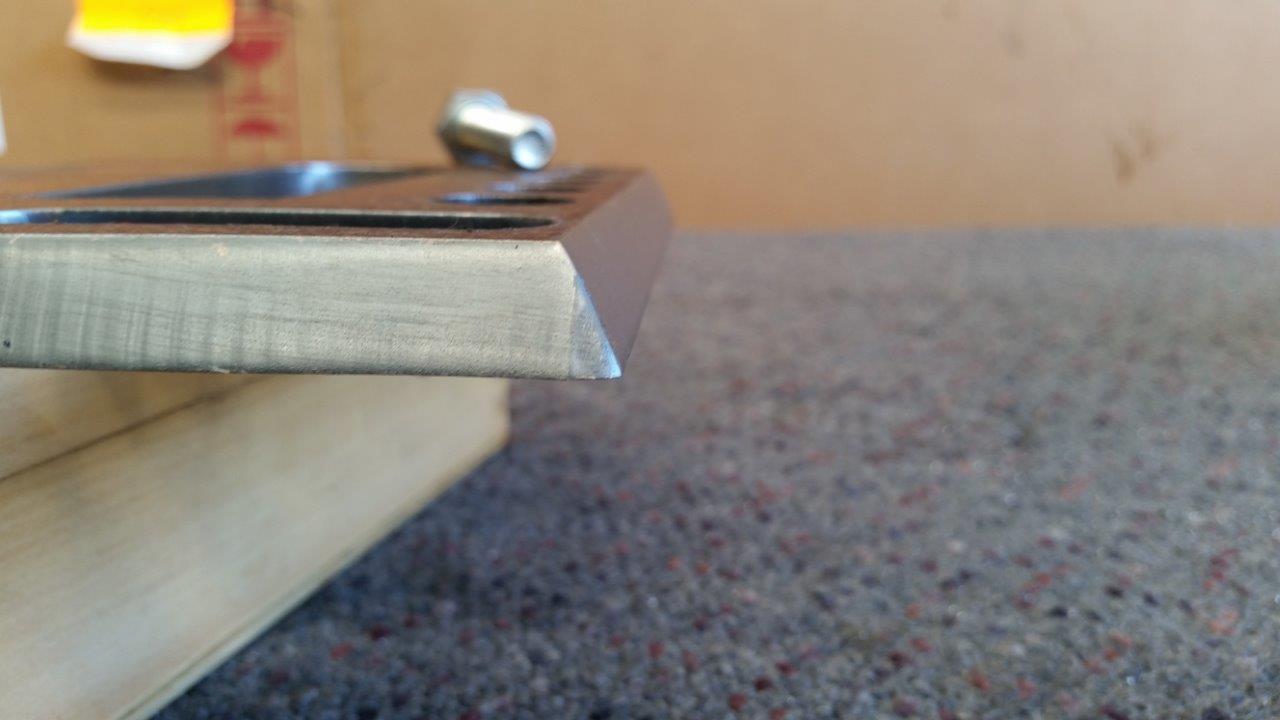

4、Cutting Sample
Featuring a low noise, no pollution, high precision and high reliability
Max 5 cutting head
This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.
Dynamic 5 cutting head
Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.
Multi-head
Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.
This Max 5 waterjet cutter can cut any angle within ±45°,it solves the traditional problem of water cutting inclination,and achieves 2D/3D cutting easily.
Dynamic 5 cutting head
Our Dynamic 5 water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the 10°cutting angle,without reducing the cuttiong speed.
Multi-head
Double or multiple cutting heads can perform the cutting task with the same track at the same time to improve efficiency greatly.
Unique design of this water jet cutting machine makes the installation and the maintenance easier.Stable working pressure to ensure the working efficiency.
1.YC pumps 40hp/50hp/100hp2.Hypertherm
Optional Functions
